Products » Dry Feeders »

Wean-to-Finish

Wean-to-Finish Image
Application
  • The Dry Wean-to-Finish Feeder takes pigs from approximately 10-12 pounds to market weight.
Stocking Rates
  • WF (Dry Wean-to-Finish Feeder) – 1.5”/pig or 8-10 pigs per feed space.
Feeder Features
  • Feed spaces are traditional 14”-16”
  • Dividers – Solid panel or V-guard dividers
  • Utilizes a “shutter” to release feed to the piglets
  • Feed saving lip – Keeps feed in the trough
  • Works with pellet and milled feed applications
Adjustments

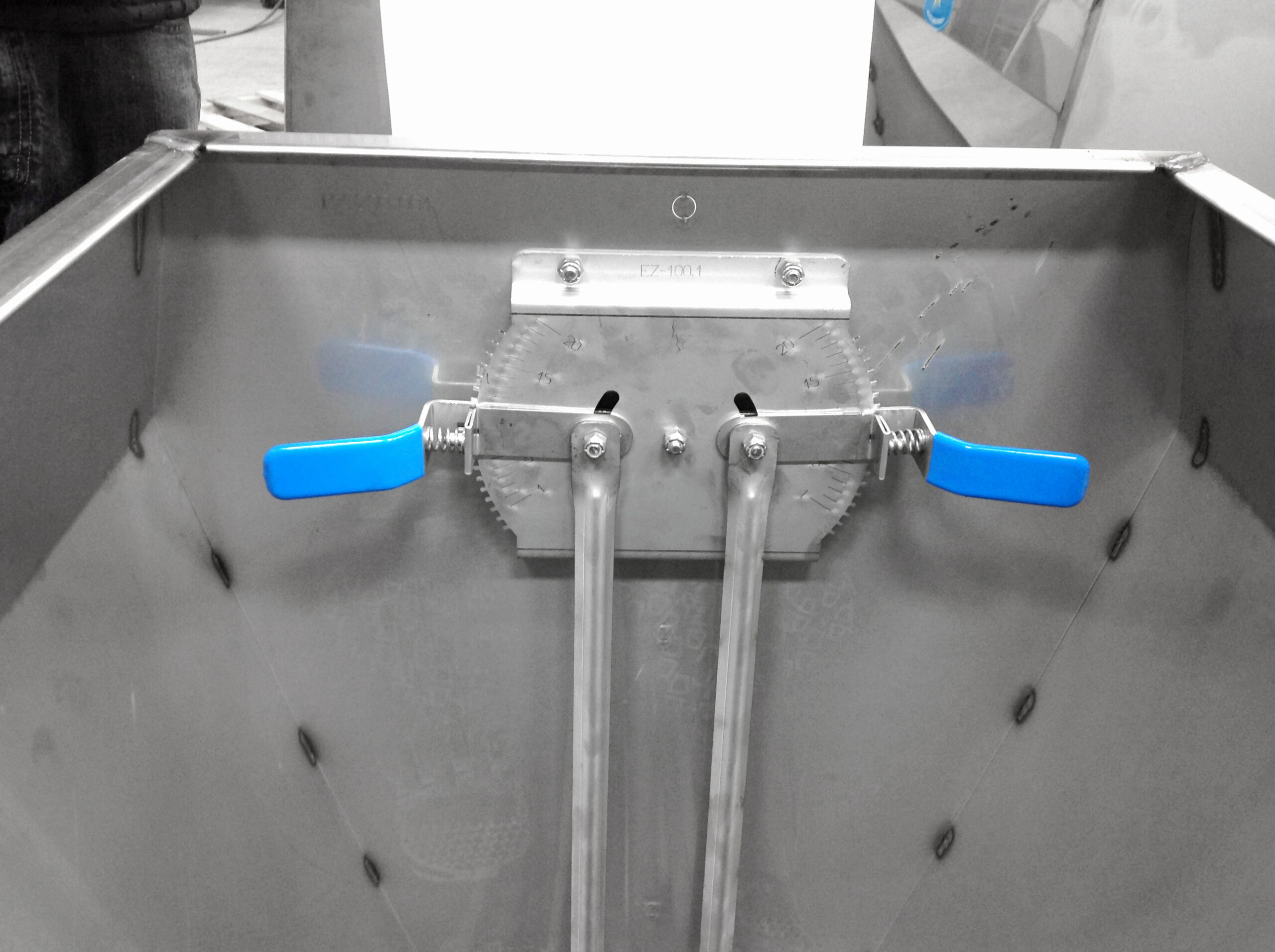

  • Ez-Squeeze

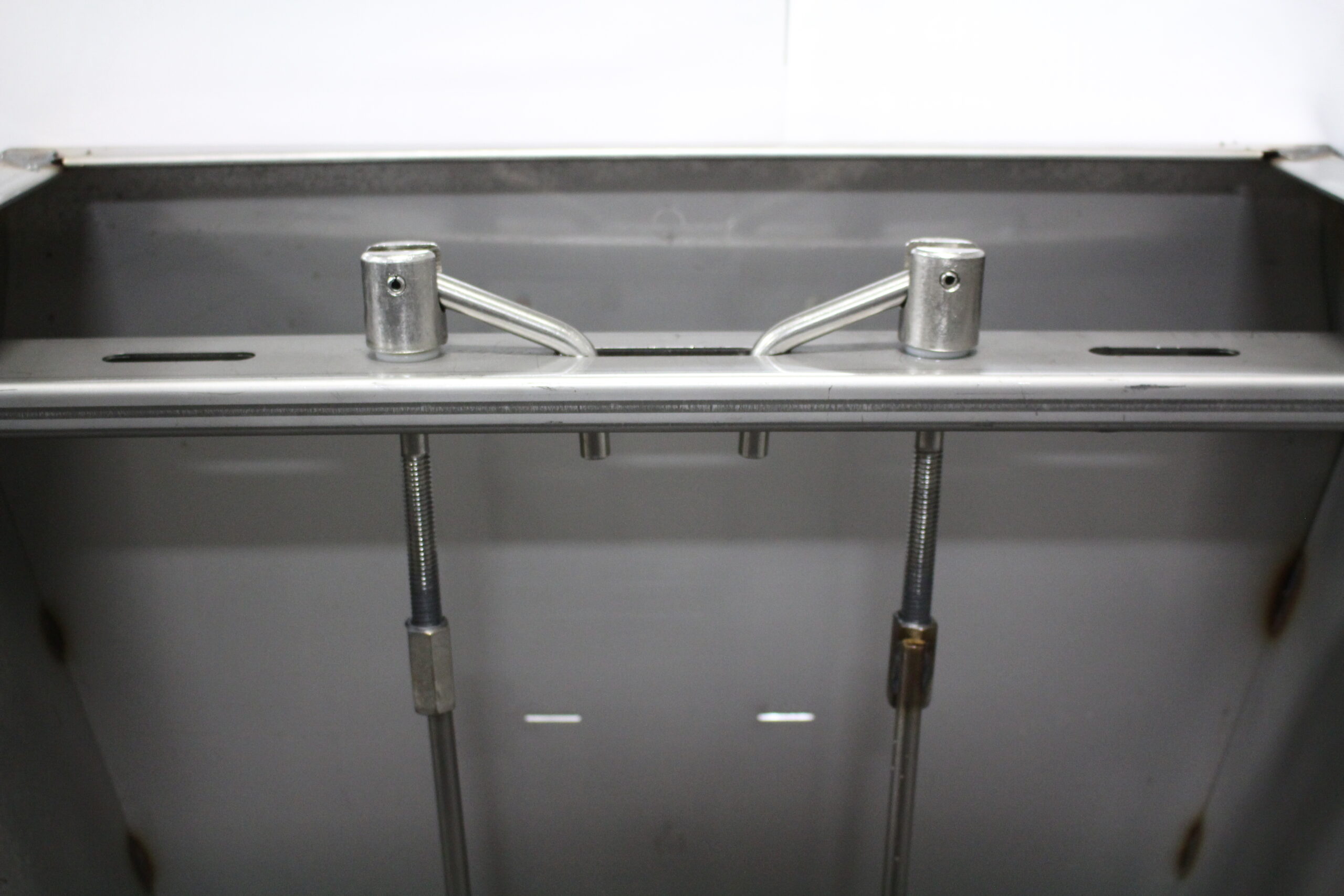

  • Hand Crank

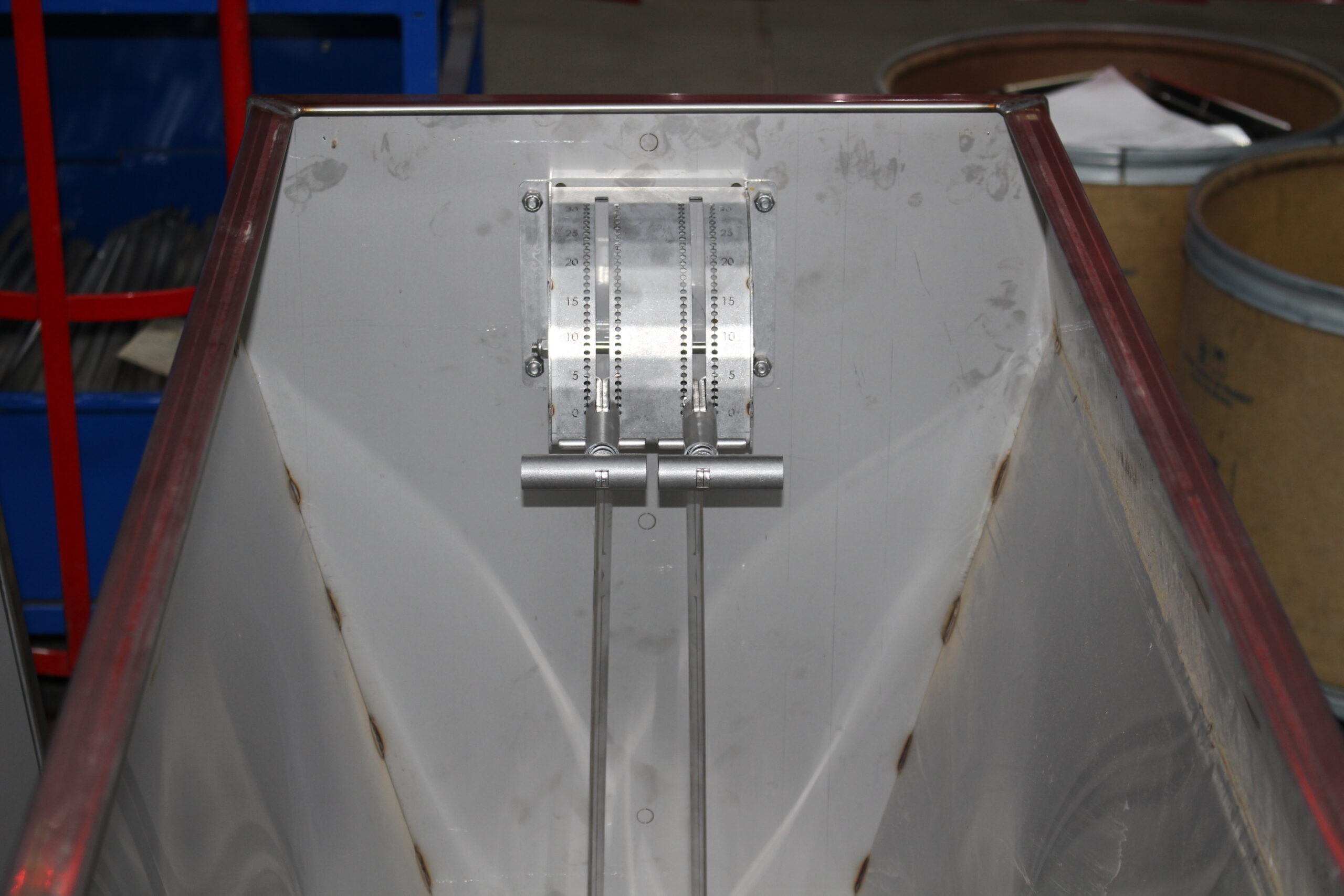

  • Precision Shift Adjust
Other
  • Available as a bolt together kit
  • Tube holders included
  • Available in single or double sided
Other SDI Products
Standard Sizes Trough Spaces Pigs per Feeder Length (in) Length (cm) Width (in) Width (cm) Height (in) Height (cm) Feed Capacity (lbs) Feed Capacity (kg)
WF14 1 16-20 14.25″ 36 25″ 64 34″ 86 129 59
WF28 2 32-40 28.25″ 72 25″ 64 34″ 86 259 117
WF30 2 32-40 30.25″ 77 25″ 64 34″ 86 277 126
WF42 3 48-60 42.25″ 107 25″ 64 34″ 86 388 176
WF48 3 48-60 48.25″ 0 25″ 64 34″ 86 443 201
WF50 4 64-80 50.25″ 128 25″ 64 34″ 86 462 210
WF56 4 64-80 56.25″ 143 25″ 64 34″ 86 517 235
WF60 4 64-80 60.25″ 153 25″ 64 34″ 86 554 251
WF66 5 80-100 66.25″ 168 25″ 64 34″ 86 609 276
WF70 5 80-100 70.25″ 178 25″ 64 34″ 86 647 293
WF72 5 80-100 72.25″ 184 25″ 64 34″ 86 665 302
WF75 5 80-100 75.25″ 191 25″ 64 34″ 86 693 314
WF84 6 96-120 84.25″ 214 25″ 64 34″ 86 776 352
  • *Pigs/Feeder based on Double Sided Feeder
  • **Approximate Feed Capacity based on feed density of 42 lbs. per cubic foot.
  • ***Custom Sizes Available
