PRODUCTS

Wean-to-Finish (MAX)

Wean-to-Finish (MAX) Image
Application
  • The Dry Wean-to-Finish Feeder takes pigs from approximately 10-12 pounds to market weight.
Stocking Rates
  • MX (Dry Wean-to-Finish MAX Feeder) – 1.5”/pig or 8-10 pigs per feed space.
Feeder Features
  • Deep Feed spaces Trough is 2” deeper than traditional wean-to-finish to give more head space to large finishing pigs.
  • Feed spaces are traditional 14”-16.”
  • Dividers – Solid panel or V-guard dividers
  • Utilizes a “shutter” to release feed to the piglets
  • Feed saving lip – Keeps feed in the trough
  • Works with pellet and milled feed applications
Adjustments

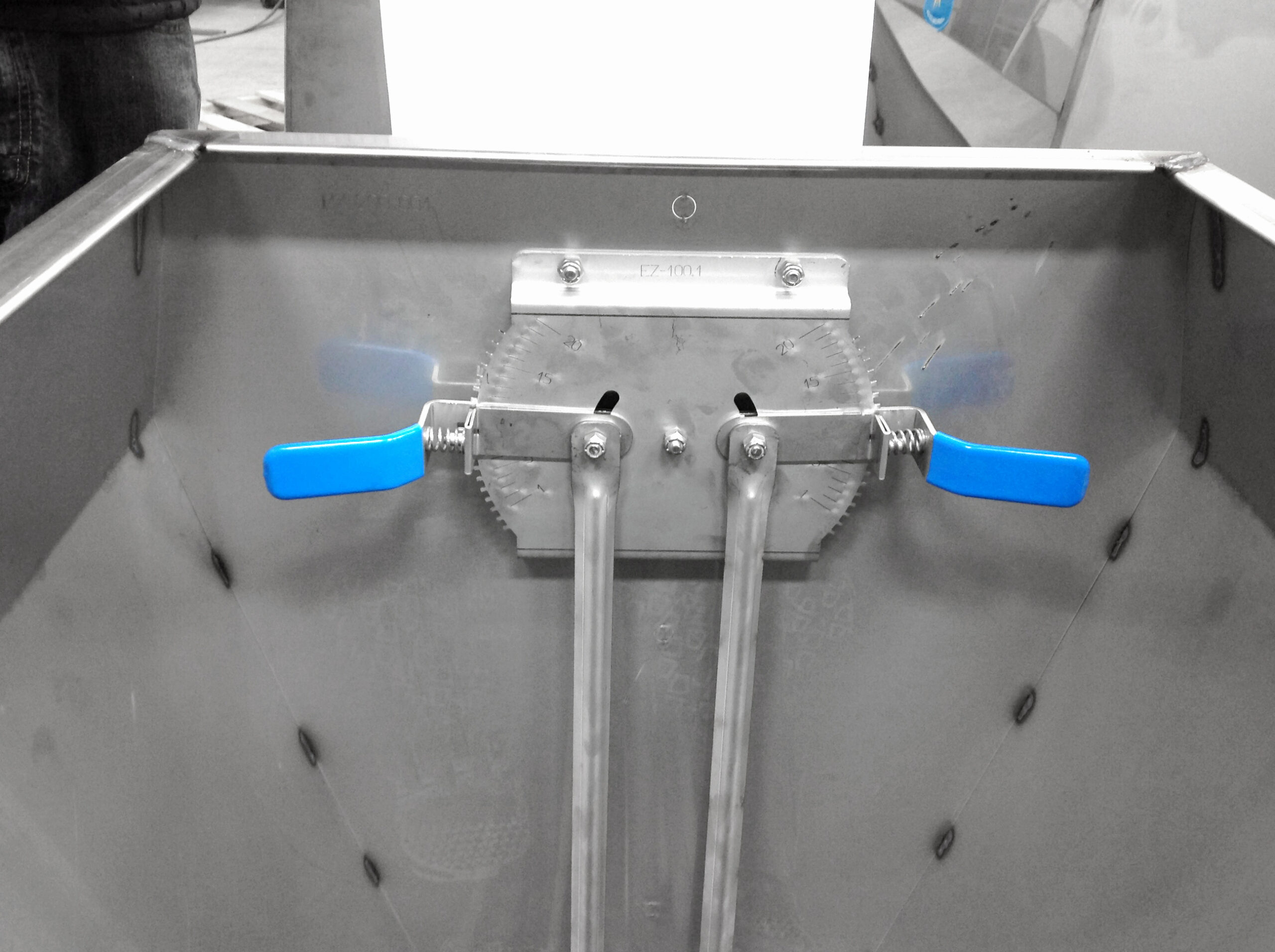

  • Ez-Squeeze

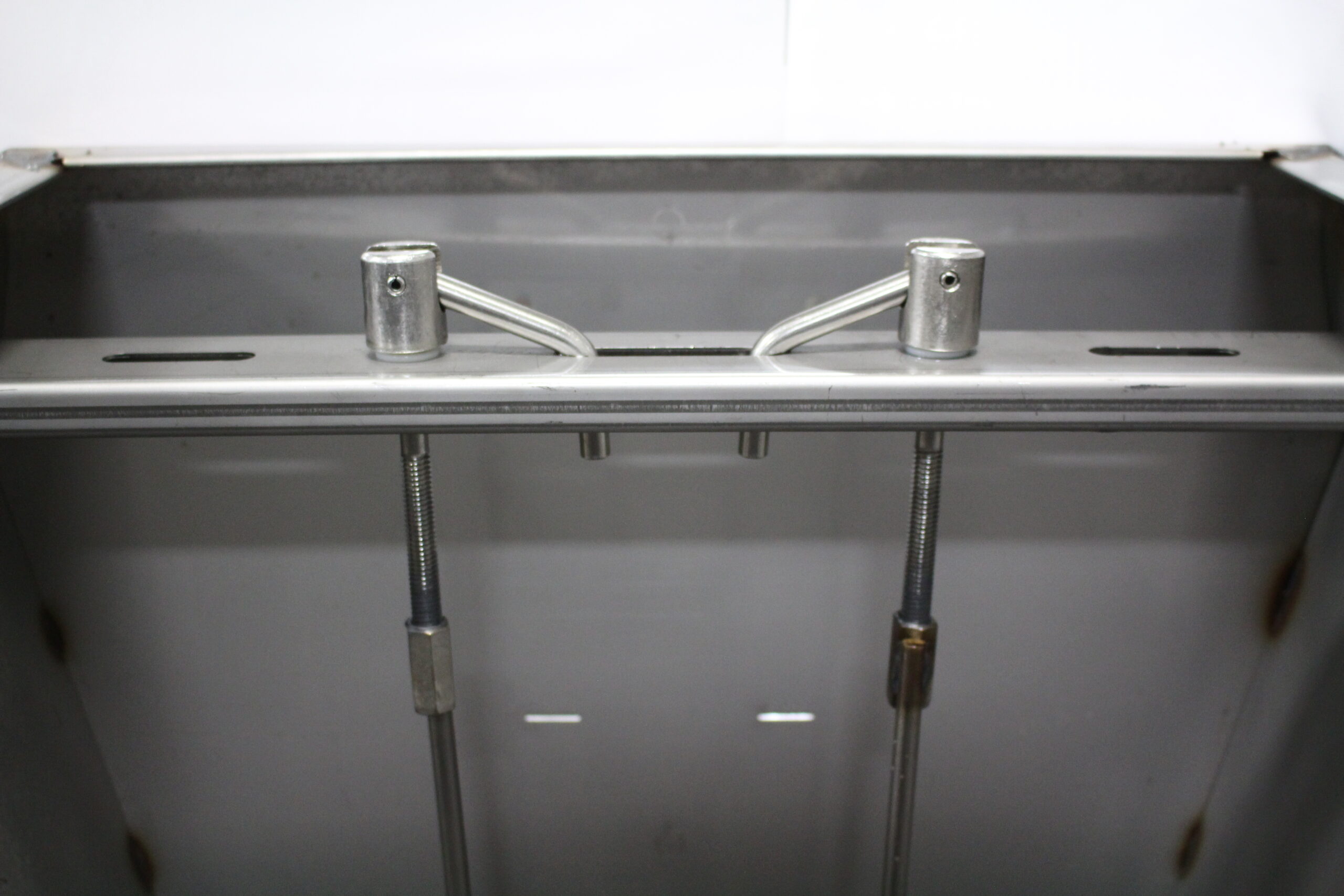

  • Hand Crank

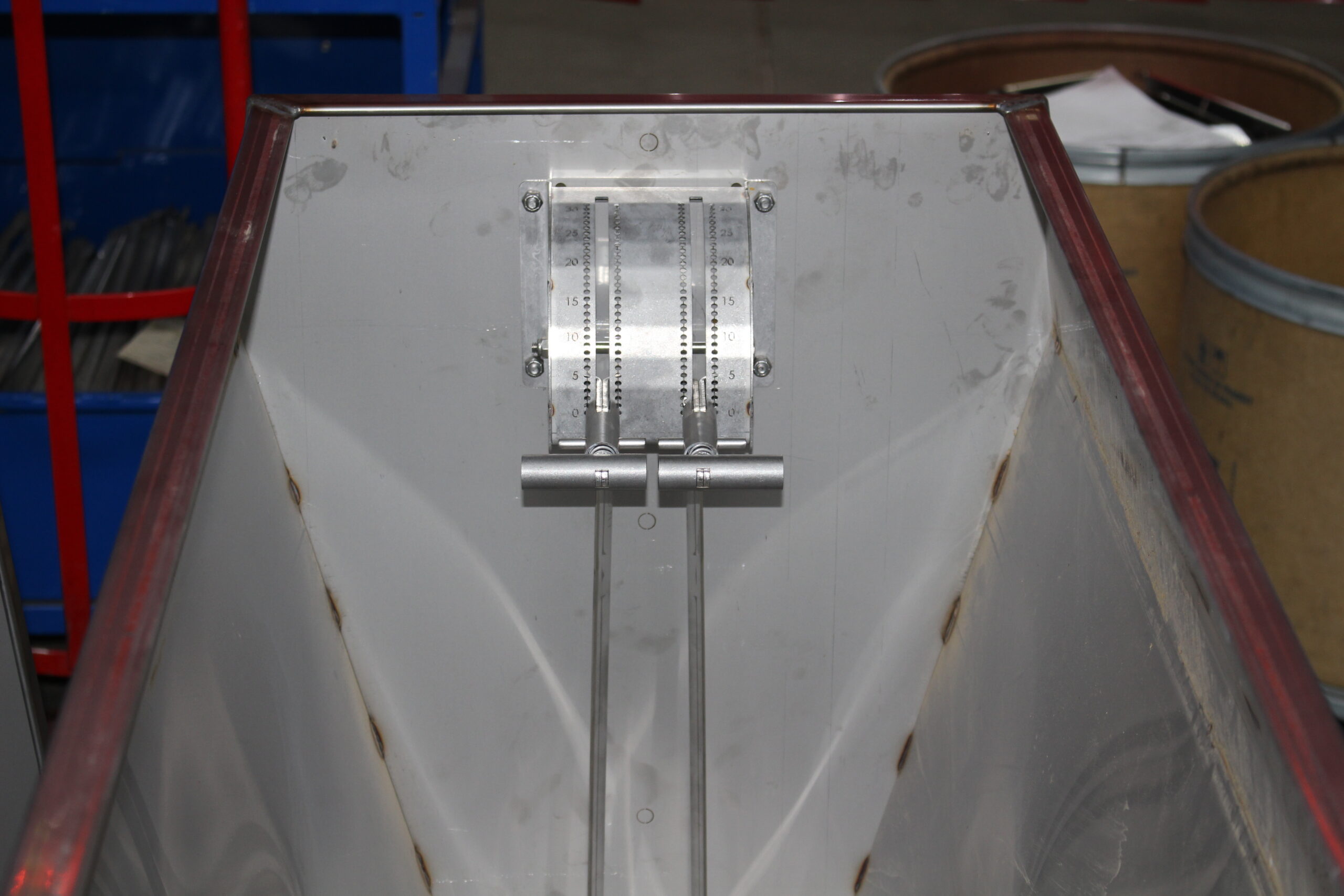

  • Precision Shift Adjust
Other
  • Available as a bolt together kit
  • Tube holders included
  • Available in single or double sided
Other SDI Products
Standard Sizes Trough Spaces Pigs per Feeder Length (in) Length (cm) Width (in) Width (cm) Height (in) Height (cm) Feed Capacity (lbs) Feed Capacity (kg)
MX28 2 32-40 28.25″ 62 30″ 76 34″ 86 259 117
MX30 2 32-40 30.25″ 82 30″ 76 34″ 86 277 126
MX36 3 48-60 36.25″ 102 30″ 76 34″ 86 332.6 151.2
MX42 3 48-60 42.25″ 123 30″ 76 34″ 86 388 176
MX48 3 48-60 48.25″ 143 30″ 76 34″ 86 443.5 201.6
MX50 4 64-80 50.25″ 153 30″ 76 34″ 86 462 210
MX56 4 64-80 56.25″ 163 30″ 76 34″ 86 517 235
MX60 4 64-80 60.25″ 184 30″ 76 34″ 86 554 251
MX70 5 80-100 70.25″ 214 30″ 76 34″ 86 647 293
MX75 6 96-120 75.25″ 191 30″ 76 34″ 86 693 314
MX84 6 96-120 84.25″ 214 30″ 76 34″ 86 776 352
MX90 6 96-120 90.25″ 229 30″ 76 34″ 86 832 377
  • *Pigs/Feeder based on Double Sided Feeder
  • **Approximate Feed Capacity based on feed density of 42 lbs. per cubic foot.
  • ***Custom Sizes Available
