Products » Dry Feeders »

Wean-to-Finish (MAX TALL)

Wean-to-Finish (MAX TALL) Image
Application
  • The Dry Wean-to-Finish Feeder takes pigs from approximately 10-12 pounds to market weight.
Stocking Rates
  • MXT (Dry Wean-to-Finish MAX TALL Feeder) – 1.5”/pig or 8-10 pigs per feed space.
Feeder Features
  • Deep Feed spaces Trough is 2” deeper than traditional wean-to-finish to give more head space to large finishing pigs.
  • 40” height provides added feed storage
  • Feed spaces are traditional 14”-16.”
  • Dividers – Solid panel or V-guard dividers
  • Utilizes a “shutter” to release feed to the piglets
  • Feed saving lip – Keeps feed in the trough
  • Works with pellet and milled feed applications
Adjustments

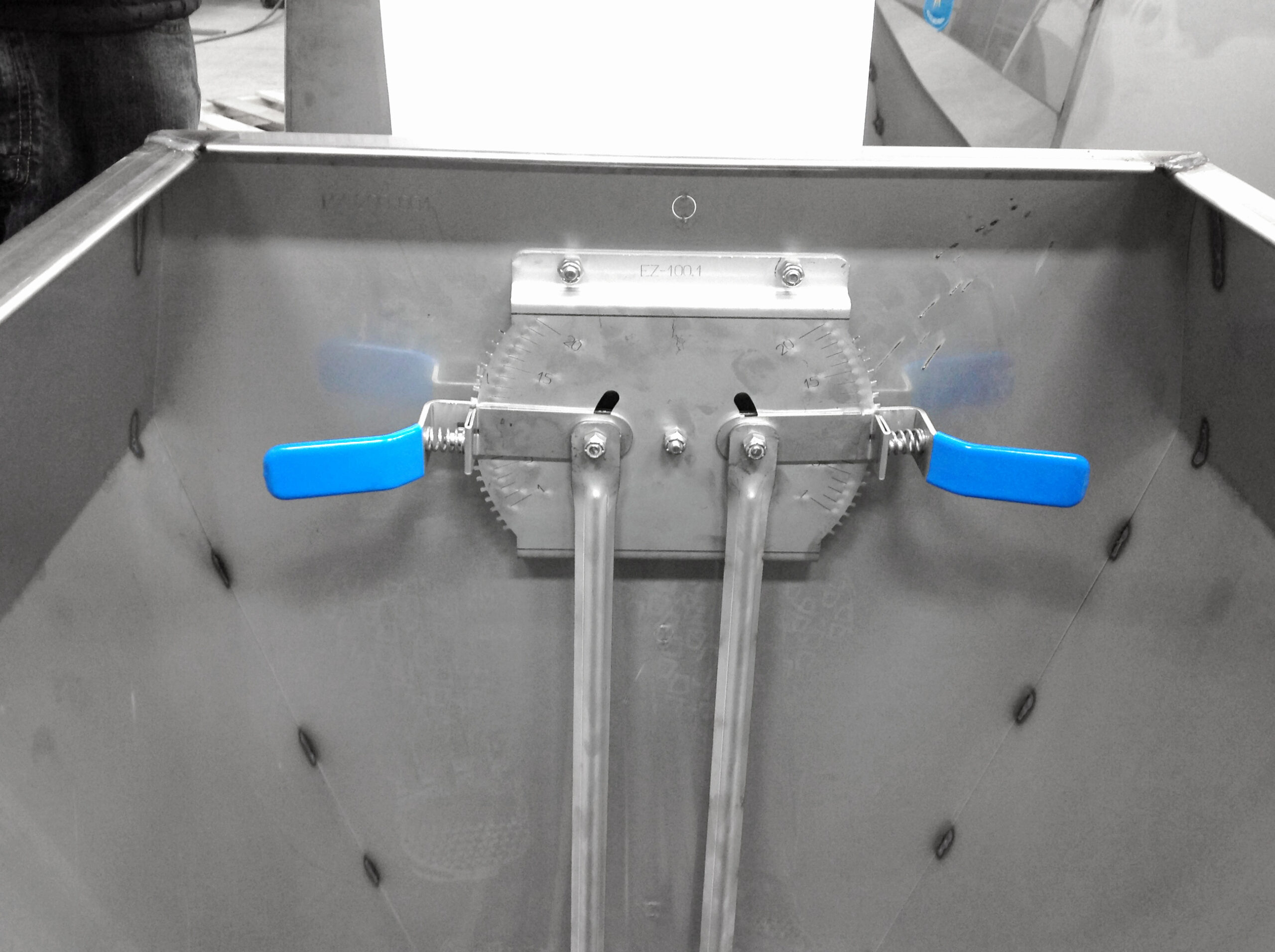

  • Ez-Squeeze

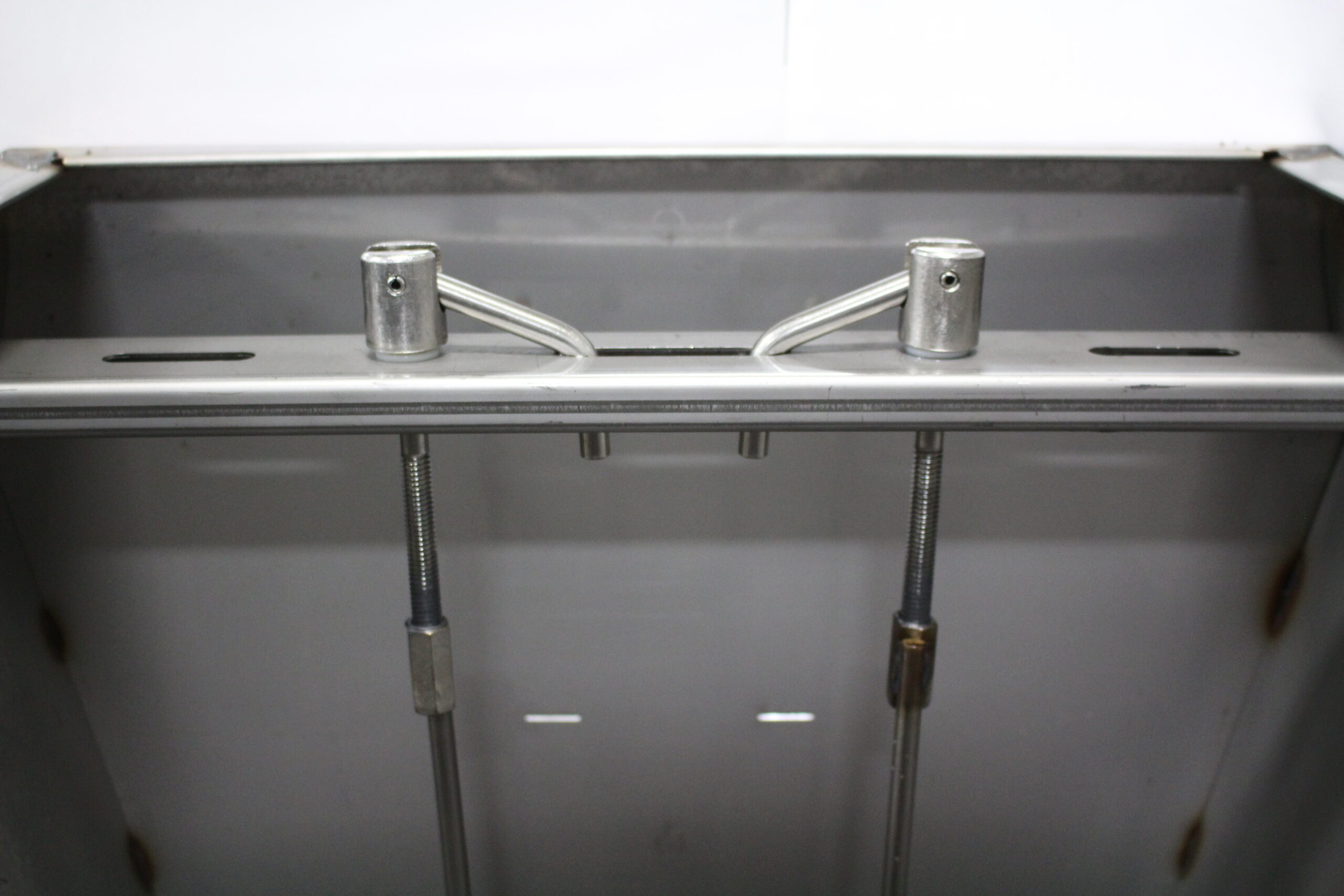

  • Hand Crank

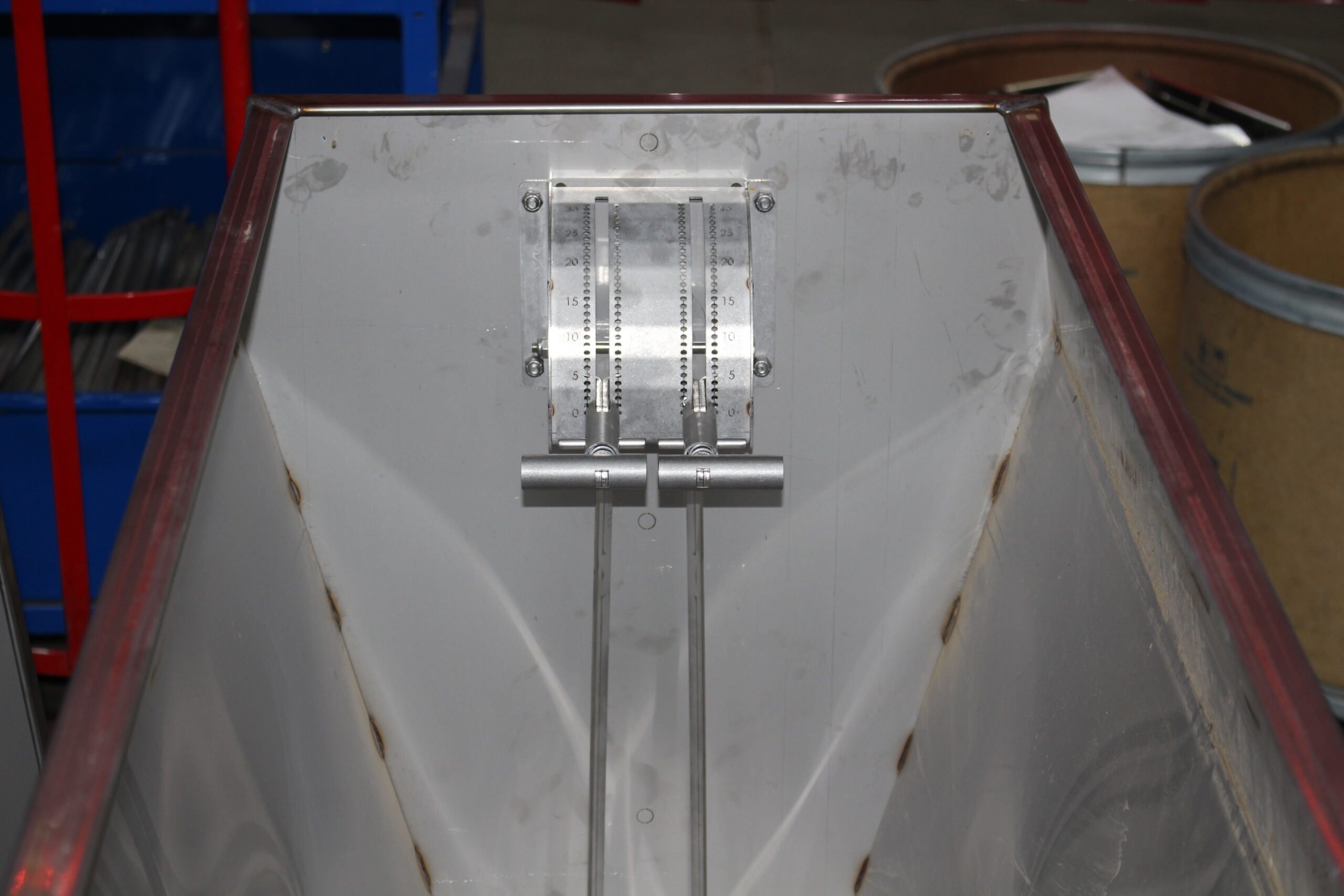

  • Precision Shift Adjust
Other
  • Available as a bolt together kit
  • Tube holders included
  • Available in single or double sided.
Other SDI Products
Standard Sizes Trough Spaces Pigs per Feeder Length (in) Length (cm) Width (in) Width (cm) Height (in) Height (cm) Feed Capacity (lbs) Feed Capacity (kg)
MXT28 2 32-40 28.25″ 62 30″ 76 40″ 102 365 166
MXT30 2 32-40 30.25″ 82 30″ 76 40″ 102 390 177
MXT36 3 48-60 36.25″ 102 30″ 76 40″ 102 468 212.4
MXT42 3 48-60 42.25″ 123 30″ 76 40″ 102 547 248
MXT48 4 64-80 48.25″ 143 30″ 76 40″ 102 624 283.2
MXT50 4 64-80 50.25″ 153 30″ 76 40″ 102 651 295
MXT56 4 64-80 56.25″ 163 30″ 76 40″ 102 729 331
MXT60 4 64-80 60.25″ 184 30″ 76 40″ 102 791 354
MXT70 5 80-100 70.25″ 214 30″ 76 40″ 102 911 413
MXT75 6 96-120 75.25″ 191 30″ 76 40″ 102 977 443
MXT84 6 96-120 84.25″ 214 30″ 76 40″ 102 1094 496
MXT90 6 96-120 90.25″ 229 30″ 76 40″ 102 1172 532
  • *Pigs/Feeder based on Double Sided Feeder
  • **Approximate Feed Capacity based on feed density of 42 lbs. per cubic foot.
  • ***Custom Sizes Available
