PRODUCTS

Nursery (Traditional)

Nursery (Traditional) Image
Application
  • Nursery Feeders used to raise piglets after weaning from 8-10 pounds to 45-60 pounds.
Stocking Rates
  • NM (Dry Nursery feeder) - 1.5”/pig or 4 piglets /6” space.
Feeder Features
  • Traditional 6” x 6” Feed Spaces.
  • Dividers – V-guard
  • Utilizes a “shutter” to release feed to the piglets
  • Feed saving lip – Keeps feed in the trough
  • Works with pellet and milled feed applications
Adjustments

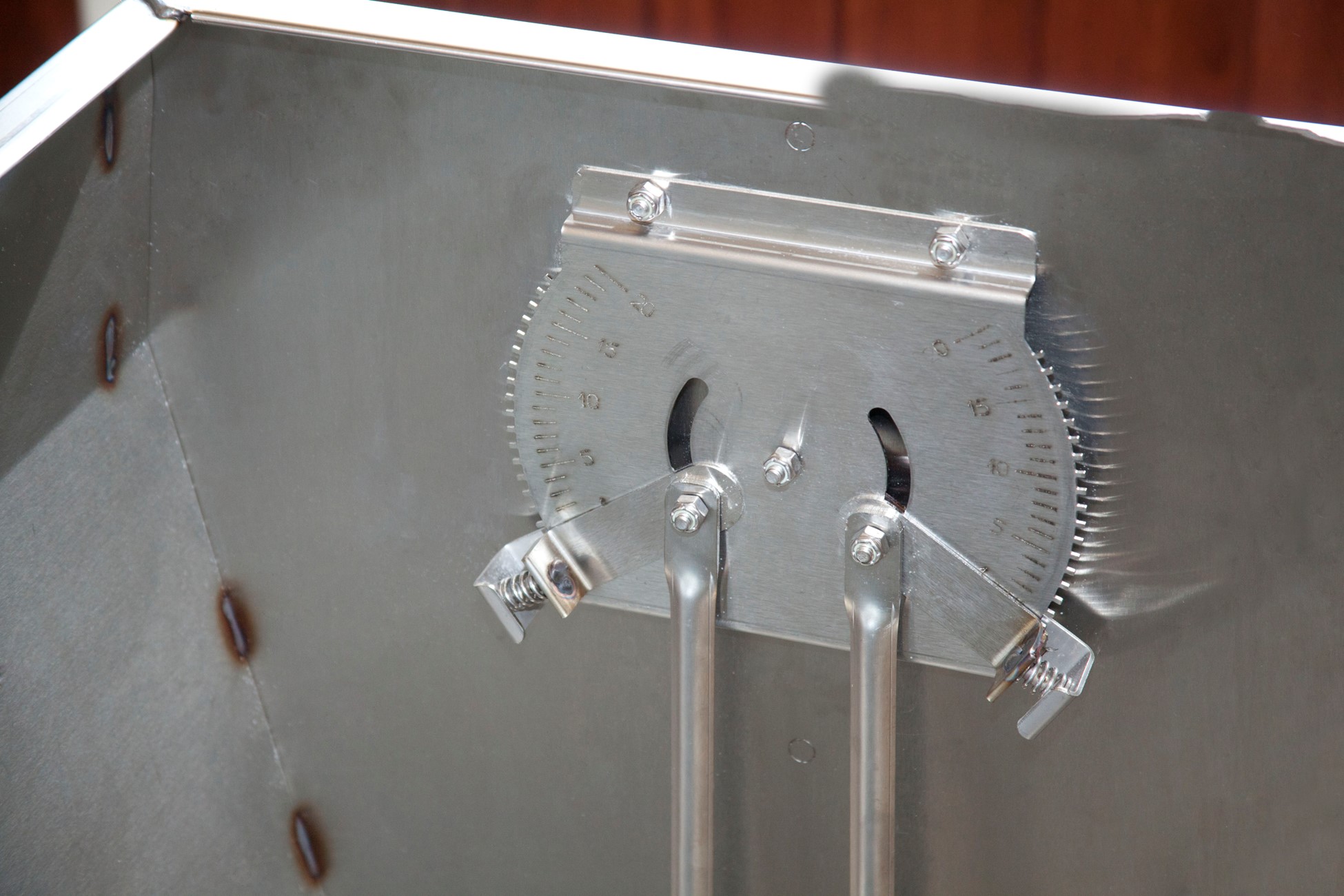

  • Ez-Squeeze

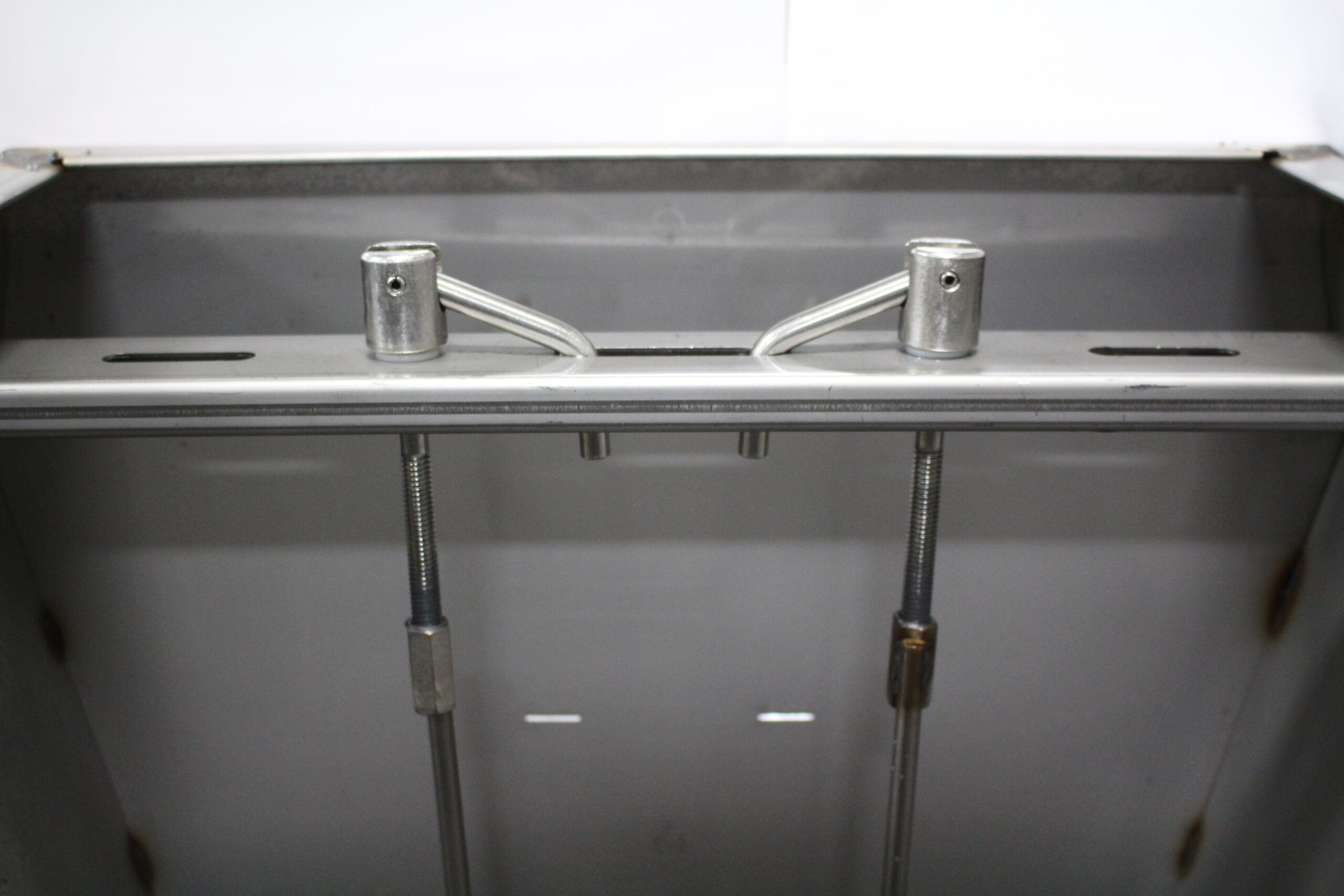

  • Hand Crank

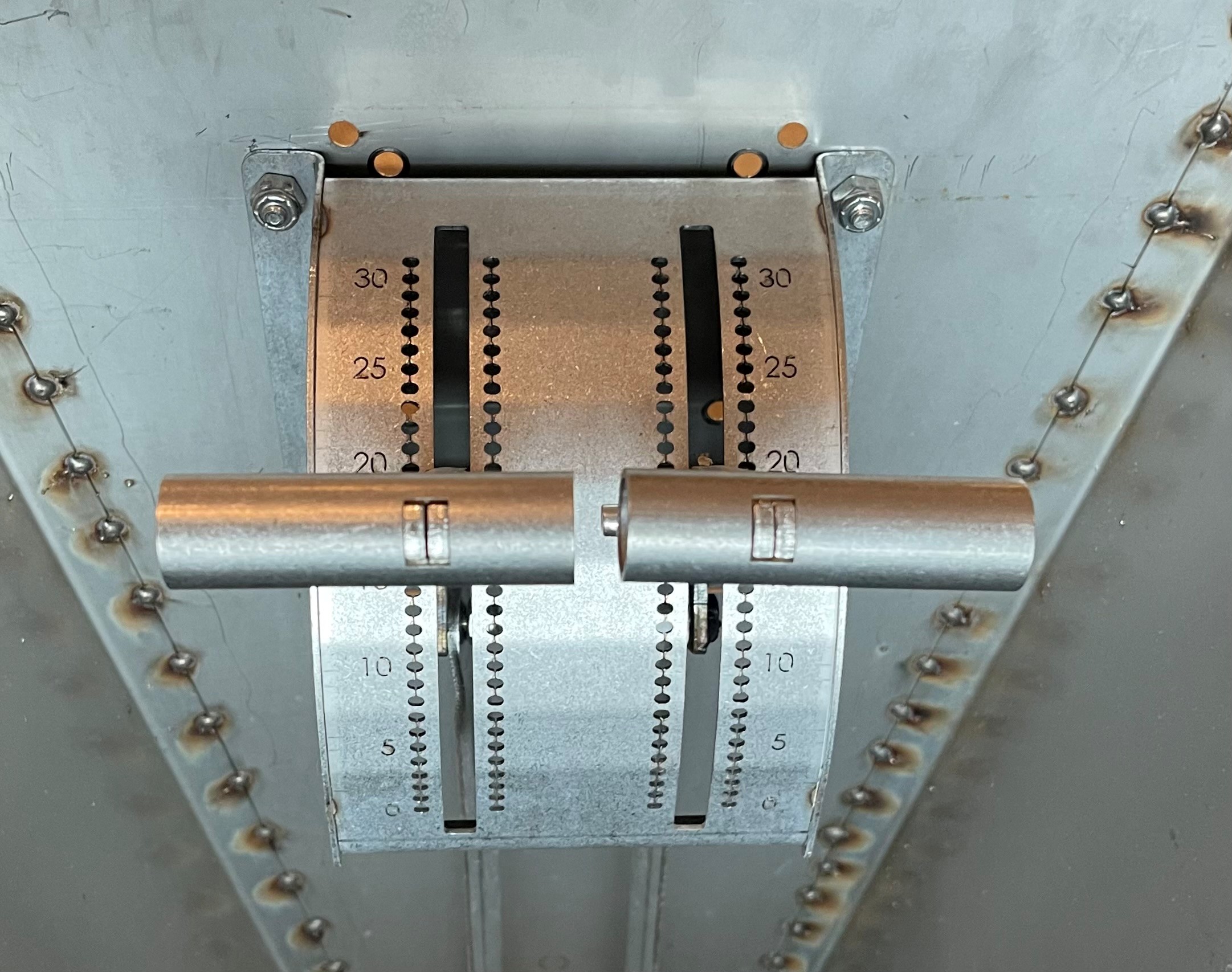

  • Precision Shift Adjust
Other
  • Available as bolt together kit
  • Tube holders included
  • Available in single or double sided.
Other SDI Products
Standard Sizes Trough Spaces Pigs per Feeder Length (in) Length (cm) Width (in) Width (cm) Height (in) Height (cm) Feed Capacity (lbs) Feed Capacity (kg)
NM18 3 22-28 18.25″ 46 17″ 56 31″ 79 91 41
NM24 4 30-36 24.25″ 62 17″ 56 31″ 79 121 55
NM30 5 38-44 30.25″ 77 17″ 56 31″ 79 151 68
NM36 6 46-52 36.25″ 92 17″ 56 31″ 79 181 82
NM42 7 54-60 42.25″ 107 17″ 56 31″ 79 212 96
NM48 8 62-68 48.25″ 122 17″ 56 31″ 79 242 110
NM54 9 70-76 54.25″ 138 17″ 56 31″ 79 272 123
NM60 10 78-84 60.25″ 153 17″ 56 31″ 79 302 137
NM66 11 86-92 66.25″ 168 17″ 56 31″ 79 333 151
NM72 12 94-100 72.25″ 184 17″ 56 31″ 79 363 165
  • *Pigs/Feeder based on Double Sided Feeder
  • **Approximate Feed Capacity based on feed density of 42 lbs. per cubic foot.
  • ***Custom Sizes Available
