We will be at the South Dakota Pork Congress Trade Show on January 13 and 14, 2021! Come see us in booths 212/213/312/313 in the Ramkota Exhibit Hall in Sioux Falls. Let us show you how durable, innovative, and well designed our American made products are.

products
with increased
strength and
longevity

PRODUCTS

1
Yes
None
1
1000000
/products/
Thumbnail
Clear All
Product Search:

Categories:

Wet/Dry Feeders
Nursery
Nursery Image
Application
  • Nursery Shelf Feeders are used to raise piglets after weaning from 8-10 pounds to 45-60 pounds.
Stocking Rates
  • CSN (Wet/Dry Nursery feeder) - 1”/pig.
Feeder Features
  • Edstrom Nipples
  • Solid Dividers
  • Feed saving lip – Keeps feed in the trough
  • Single piece, Flow-drilled threaded waterline eliminates the chance of leaks around nipples.
  • Edges are roll-hemmed and folded to prevent sharp points and provide superior strength.
  • Tube holders included
Adjustments
  • Precision Shift Adjust
  • Ez Squeeze
  • Hand Crank
Options
  • Available as bolt together feeders
  • Available in single or double sided
  • Welded on feet available
Other SDI Products
Standard Sizes Trough Spaces Pigs per Feeder Length
 (in)		 Length
  (cm)		 Width
  (in)		 Width
  (cm)		 Height
  (in)		 Height
  (cm)		 Feed Capacity
  (lbs)		 Feed Capacity
  (kg)
CSN18 2 32-40 18.25″ 39 18.25″ 46 28″ 71 77 35
CSN24 3 44-52 24.25″ 72 18.25″ 46 28″ 71 102 46
CSN30 3 54-64 30.25″ 77 18.25″ 46 28″ 71 127 58
CSN36 4 68-76 36.25″ 92 18.25″ 46 28″ 71 152 69
CSN42 5 68-76 36.25″ 107 18.25″ 46 28″ 71 177 80
CSN48 6 80-88 42.25″ 123 18.25″ 46 28″ 71 203 92
CSN54 6 92-100 48.25″ 123 18.25″ 46 28″ 71 228 103
CSN60 7 104-112 54.25″ 153 18.25″ 46 28″ 71 253 115
  • *Pigs/Feeder based on Double Sided Feeder
  • **Approximate Feed Capacity based on feed density of 42 lbs. per cubic foot.
  • ***Custom Sizes Available

Wean-to-Finish
Wean-to-Finish Image
Application
  • Wean-to-Finish Shelf Feeders are used to raise piglets from weaning to market weight.
Stocking Rates
  • CSW (Wet/Dry Nursery feeder) - 12-13 pigs per feed space.
Feeder Features
  • Edstrom Nipples
  • Solid Dividers
  • Feed saving lip – Keeps feed in the trough
  • Single piece, Flow-drilled waterline eliminates the chance of leaks around nipples.
  • Roll-hemmed and folded edges to avoid sharp points and provide superior strength.
  • Tube holders included
Adjustments
  • Precision Shift Adjust
  • Ez Squeeze
  • Hand Crank
Options
  • Available in 40” XT height.
  • Available as bolt together feeders
  • Available in single or double sided
  • Welded on feet available
Other SDI Products
Standard Sizes Trough Spaces Pigs per Feeder Length
  (in)		 Length
 (cm)		 Width
 (in)		 Width
  (cm)		 Height
  (in)		 Height
  (cm)		 Feed Capacity
  (lbs)		 Feed Capacity
  (kg)
CSW15 1 20-30 15.25″ 39 22″ 56 31″ 79 82 37
CSW28 2 40-48 28.25″ 72 22″ 56 31″ 79 153 69
CSW30 2 40-48 30.25″ 77 22″ 56 31″ 79 164 74
CSW36 3 60-72 36.25″ 92 22″ 56 31″ 79 197 89
CSW42 3 60-72 42.25″ 107 22″ 56 31″ 79 229 104
CSW48 3 60-72 48.25″ 123 22″ 56 31″ 79 262 119
CSW56 4 80-96 56.25″ 143 22″ 56 31″ 79 306 139
CSW60 4 80-96 60.25″ 153 22″ 56 31″ 79 328 149
CSW72 5 100-124 72.25″ 184 22″ 56 31″ 79 393 178
CSW84 6 120-144 84.25″ 214 22″ 56 31″ 79 459 208
CSW92 6 132-156 92.25″ 234 22″ 56 31″ 79 502 228
  • *Pigs/Feeder based on Double Sided Feeder
  • **Approximate Feed Capacity based on feed density of 42 lbs. per cubic foot.
  • ***Custom Sizes Available
Finish
Finish Image
Application
  • Finish Shelf Feeders are used to raise market hogs up to market weight.
Stocking Rates
  • CSF Wet/Dry Finish Feeder – 12-13 pigs per feed space.
Feeder Features
  • Edstrom Nipples
  • Feeder Shelf made with sturdy 14-gauge 304 SS
  • Solid Dividers
  • Feed saving lip – Keeps feed in the trough
  • Single piece, Flow-drilled waterline eliminates the chance of leaks around nipples.
  • Roll-hemmed and folded edges to avoid sharp points and provide superior strength
  • Tube holders included
Adjustments
  • Precision Shift Adjust
  • Ez Squeeze
  • Hand Crank
Options
  • Available in 40” XT height.
  • Available as bolt together feeders
  • Available in single or double sided
  • Welded on feet available
Other SDI Products
Standard Sizes Trough Spaces Pigs per Feeder Length
 (in)		 Length
  (cm)		 Width
 (in)		 Width
  (cm)		 Height
  (in)		 Height
  (cm)		 Feed Capacity
  (lbs)		 Feed Capacity
 (kg)
CSF15 1 20-30 15.25″ 39 22″ 56 31″ 79 82 37
CSF28 2 40-48 28.25″ 72 22″ 56 31″ 79 153 69
CSF30 2 40-48 30.25″ 77 22″ 56 31″ 79 164 74
CSF36 3 60-72 36.25″ 92 22″ 56 31″ 79 197 89
CSF42 3 60-72 42.25″ 107 22″ 56 31″ 79 229 104
CSF48 3 60-72 48.25″ 123 22″ 56 31″ 79 262 119
CSF56 4 80-96 56.25″ 143 22″ 56 31″ 79 306 139
CSF60 4 80-96 60.25″ 153 22″ 56 31″ 79 328 149
CSF72 5 100-124 72.25″ 184 22″ 56 31″ 79 393 178
CSF84 6 120-144 84.25″ 214 22″ 56 31″ 79 459 208
CSF92 6 120-144 92.25″ 234 22″ 56 31″ 79 502 228
  • *Pigs/Feeder based on Double Sided Feeder
  • **Approximate Feed Capacity based on feed density of 42 lbs. per cubic foot.
  • ***Custom Sizes Available

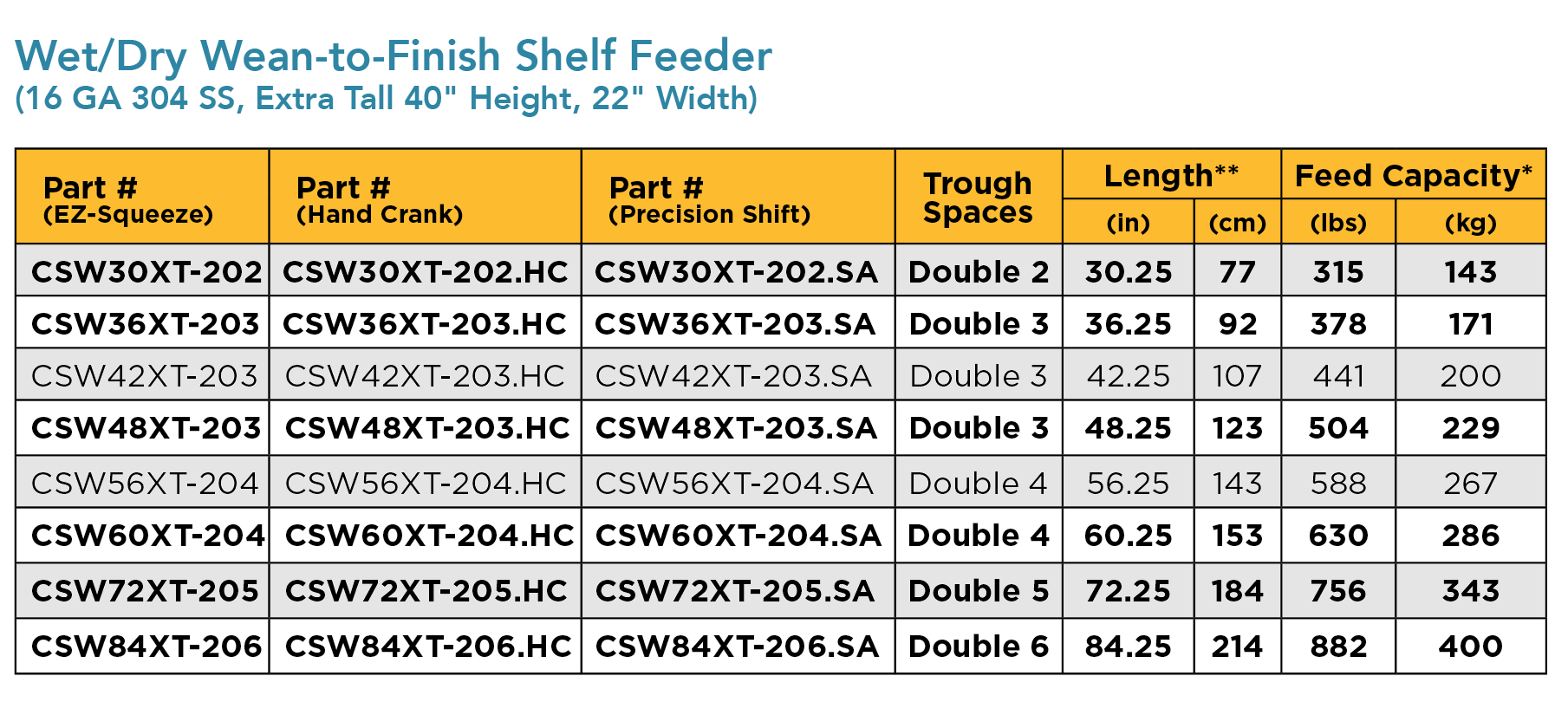

Wean-to-Finish Tall
Wean-to-Finish Tall Image
Application
  • Wean-to-Finish Shelf Feeders are used to raise piglets from weaning to market weight.
Stocking Rates
  • CSW XT Wet/Dry Wean-to-Finish Feeder – 12-13 pigs per feed space.
Feeder Features
  • Extra Tall height doubles the feed capacity of standard height feeders.
  • Waterline fence prevents pigs from crawling through feeder.
  • Feeder Shelf made with sturdy 14-gauge 304 SS
  • Edstrom Nipples
  • Solid Dividers
  • Feed saving lip – Keeps feed in the trough
  • Single piece, Flow-drilled waterline eliminates the chance of leaks around nipples.
  • Roll-hemmed and folded edges to avoid sharp points and provide superior strength
  • Tube holders included
Adjustments
  • Precision Shift Adjust
  • Ez Squeeze
  • Hand Crank
Options
  • Available as bolt together feeders
  • Available in single or double sided
  • Welded on feet available
Other SDI Products
Standard Sizes Trough Spaces Pigs per Feeder Length
  (in)		 Length
  (cm)		 Width
 (in)		 Width
 (cm)		 Height
  (in)		 Height
 (cm)		 Feed Capacity
  (lbs)		 Feed Capacity
 (kg)
CSW15XT 1 20-30 15.25″ 39 22″ 56 40″ 102 158 72
CSW28XT 2 40-48 28.25″ 72 22″ 56 40″ 102 294 133
CSW30XT 2 40-48 30.25″ 77 22″ 56 40″ 102 315 143
CSW36XT 3 60-72 36.25″ 92 22″ 56 40″ 102 378 171
CSW42XT 3 60-72 42.25″ 107 22″ 56 40″ 102 441 200
CSW48XT 3 60-72 48.25″ 123 22″ 56 40″ 102 504 229
CSW56XT 4 80-96 56.25″ 143 22″ 56 40″ 102 588 267
CSW60XT 4 80-96 60.25″ 153 22″ 56 40″ 102 630 286
CSW72XT 5 100-124 72.25″ 184 22″ 56 40″ 102 756 343
CSW84XT 6 120-144 84.25″ 214 22″ 56 40″ 102 882 400
CSW92XT 6 132-156 92.25″ 234 22″ 56 40″ 102  966 438
  • *Pigs/Feeder based on Double Sided Feeder
  • **Approximate Feed Capacity based on feed density of 42 lbs. per cubic foot.
  • ***Custom Sizes Available
Finish Tall
Finish Tall Image
Application
  • Finish Shelf Feeders are used to raise market hogs up to market weight.
Stocking Rates
  • CSF XT Wet/Dry Wean-to-Finish Feeder – 12-13 pigs per feed space.
Feeder Features
  • Extra Tall height doubles the feed capacity of standard height feeders.
  • Waterline fence prevents pigs from crawling through feeder.
  • Feeder Shelf made with sturdy 14-gauge 304 SS
  • Edstrom Nipples
  • Solid Dividers
  • Feed saving lip – Keeps feed in the trough
  • Single piece, Flow-drilled waterline eliminates the chance of leaks around nipples.
  • Roll-hemmed and folded edges to avoid sharp points and provide superior strength
  • Tube holders included
Adjustments
  • Precision Shift Adjust
  • Ez Squeeze
  • Hand Crank
Options
  • Available as bolt together feeders
  • Available in single or double sided
  • Welded on feet available
Other SDI Products
Standard Sizes Trough Spaces Pigs per Feeder Length (in) Length (cm) Width (in) Width (cm) Height (in) Height (cm) Feed Capacity (lbs) Feed Capacity (kg)
CSF15XT 1 20-30 15.25″ 39 22″ 56 40″ 102 158 72
CSF28XT 2 40-48 28.25″ 72 22″ 56 40″ 102 294 133
CSF30XT 2 40-48 30.25″ 77 22″ 56 40″ 102 315 143
CSF36XT 3 60-72 36.25″ 92 22″ 56 40″ 102 378 171
CSF42XT 3 60-72 42.25″ 107 22″ 56 40″ 102 441 200
CSF48XT 3 60-72 48.25″ 123 22″ 56 40″ 102 504 229
CSF56XT 4 80-96 56.25″ 143 22″ 56 40″ 102 588 267
CSF60XT 4 80-96 60.25″ 153 22″ 56 40″ 102 630 286
CSF72XT 5 100-124 72.25″ 184 22″ 56 40″ 102 756 343
CSF84XT 6 120-144 84.25″ 214 22″ 56 40″ 102 882 400
CSF92XT 6 132-156 92.25″ 234 22″ 56 40″ 102
  • *Pigs/Feeder based on Double Sided Feeder
  • **Approximate Feed Capacity based on feed density of 42 lbs. per cubic foot.
  • ***Custom Sizes Available
Shut Off Feeder
Shut Off Feeder Image
Application
  • Wean-to-Finish Shelf Feeders are used to raise piglets from weaning to market weight.
Stocking Rates
  • SO (Wet/Dry Shut off Shelf Feeder) – 12-13 pigs per feed space.
Feeder Features
  • Shut-off feature allows operator to shut off feed to both sides or to one side of the feed shelf while allowing the other side to operate.
  • Edstrom Nipples
  • Solid Dividers
  • Feed saving lip – Keeps feed in the trough
  • Single piece, Flow-drilled waterline eliminates the chance of leaks around nipples.
  • Roll-hemmed and folded edges to avoid sharp points and provide superior strength
  • Tube holders included
Adjustments
  • Precision Shift Adjust
  • Ez Squeeze
  • Hand Crank
Options
  • Available in 40” XT height.
  • Available as bolt together feeder
  • Available in single or double sided
  • Welded on feet available
Other SDI Products Wet/Dry Wean-to-Finish SHUT OFF Shelf Feeder - 31” or 40” Height available, 16 GA 304 SS
Standard Sizes Trough Spaces Pigs per Feeder Length
 (in)		 Length
 (cm)		 Width
 (in)		 Width
(cm)		 Height
 (in)		 Height
 (cm)		 Feed Capacity
 (lbs)		 Feed Capacity
 (kg)
CSW15.SO 1 20-30 15.25″ 39 22″ 56 31″ 79 82 37
CSW28.SO 2 40-48 28.25″ 72 22″ 56 31″ 79 153 69
CSW30.SO 2 40-48 30.25″ 77 22″ 56 31″ 79 164 74
CSW36.SO 3 60-72 36.25″ 92 22″ 56 31″ 79 197 89
CSW42.SO 3 60-72 42.25″ 107 22″ 56 31″ 79 229 104
CSW48.SO 3 60-72 48.25″ 123 22″ 56 31″ 79 262 119
CSW56.SO 4 80-96 56.25″ 143 22″ 56 31″ 79 306 139
CSW60.SO 4 80-96 60.25″ 153 22″ 56 31″ 79 328 149
CSW72.SO 5 100-124 72.25″ 184 22″ 56 31″ 79 393 178
Wet/Dry Wean-to-Finish SHUT OFF Shelf Feeder - 40” Height, 16 GA 304 SS
Standard Sizes Trough Spaces Pigs per Feeder Length
(in)		 Length
 (cm)		 Width
(in)		 Width
 (cm)		 Height
(in)		 Height
 (cm)		 Feed Capacity
(lbs)		 Feed Capacity
(kg)
CSW15XT.SO 1 20-30 15.25″ 39 22″ 56 40″ 102 158 72
CSW28XT.SO 2 40-48 28.25″ 72 22″ 56 40″ 102 294 133
CSW30XT.SO 2 40-48 30.25″ 77 22″ 56 40″ 102 315 143
CSW36XT.SO 3 60-72 36.25″ 92 22″ 56 40″ 102 378 171
CSW42XT.SO 3 60-72 42.25″ 107 22″ 56 40″ 102 441 200
CSW48XT.SO 3 60-72 48.25″ 123 22″ 56 40″ 102 504 229
CSW56XT.SO 4 80-96 56.25″ 143 22″ 56 40″ 102 588 267
CSW60XT.SO 4 80-96 60.25″ 153 22″ 56 40″ 102 630 286
CSW72XT.SO 5 100-124 72.25″ 184 22″ 56 40″ 102 756 343
  • *Pigs/Feeder based on Double Sided Feeder
  • **Approximate Feed Capacity based on feed density of 42 lbs. per cubic foot.
  • ***Custom Sizes Available
Drop Shelf Feeder
Drop Shelf Feeder Image
Application
  • Wean-to-Finish Shelf Feeders are used to raise piglets from weaning to market weight.
Stocking Rates
  • CSD Wet/Dry Wean-to-Finish Feeder – 12-13 pigs per feed space.
Feeder Features
  • Drop Shelf – Shelf height can be adjusted to 6.5”, 8”, or 9.5” to allow weaned pigs access to feed and can be raised as pigs grow.
  • Waterline fence prevents pigs from crawling through feeder.
  • Feeder Shelf made with sturdy 14-gauge 304 SS
  • Edstrom Nipples
  • Solid Dividers
  • Feed saving lip – Keeps feed in the trough.
  • Single piece, Flow-drilled waterline eliminates the chance of leaks around nipples.
  • Roll-hemmed and folded edges to avoid sharp points and provide superior strength
  • Tube holders included
Adjustments
  • Precision Shift Adjust
  • Ez Squeeze
  • Hand Crank
Options
  • Available in 40” XT height.
  • Available as bolt together feeder
  • Available in single or double sided
  • Welded on feet available
Other SDI Products Wet/Dry Wean-to-Finish DROP Shelf Feeder (CSD & CSDXT Series)- 34” or 40” Height available, 16 GA 304 SS
Standard Sizes Trough Spaces Pigs per Feeder Length
(in)		 Length
 (cm)		 Width
(in)		 Width
(cm)		 Height
(in)		 Height
 (cm)		 Feed Capacity
 (lbs)		 Feed Capacity
 (kg)
CSD15 1 20-30 15.25″ 39 22″ 56 31″ 79 82 37
CSD28 2 40-48 28.25″ 72 22″ 56 31″ 79 153 69
CSD30 2 40-48 30.25″ 77 22″ 56 31″ 79 164 74
CSD36 3 60-72 36.25″ 92 22″ 56 31″ 79 197 89
CSD42 3 60-72 42.25″ 107 22″ 56 31″ 79 229 104
CSD48 3 60-72 48.25″ 123 22″ 56 31″ 79 262 119
CSD56 4 80-96 56.25″ 143 22″ 56 31″ 79 306 139
CSD60 4 80-96 60.25″ 153 22″ 56 31″ 79 328 149
CSD72 5 100-124 72.25″ 184 22″ 56 31″ 79 393 178
Wet/Dry Wean-to-Finish DROP Shelf Feeder (CSDXT Series)- 40” Height, 16 GA 304 SS
Standard Sizes Trough Spaces Pigs per Feeder Length
(in)		 Length
(cm)		 Width
 (in)		 Width
 (cm)		 Height
 (in)		 Height
 (cm)		 Feed Capacity
 (lbs)		 Feed Capacity
 (kg)
CSD15XT 1 20-30 15.25″ 39 22″ 56 40″ 102 158 72
CSD28XT 2 40-48 28.25″ 72 22″ 56 40″ 102 294 133
CSD30XT 2 40-48 30.25″ 77 22″ 56 40″ 102 315 143
CSD36XT 3 60-72 36.25″ 92 22″ 56 40″ 102 378 171
CSD42XT 3 60-72 42.25″ 107 22″ 56 40″ 102 441 200
CSD48XT 3 60-72 48.25″ 123 22″ 56 40″ 102 504 229
CSD56XT 4 80-96 56.25″ 143 22″ 56 40″ 102 588 267
CSD60XT 4 80-96 60.25″ 153 22″ 56 40″ 102 630 286
CSD72XT 5 100-124 72.25″ 184 22″ 56 40″ 102 756 343
  • *Pigs/Feeder based on Double Sided Feeder
  • **Approximate Feed Capacity based on feed density of 42 lbs. per cubic foot.
  • ***Custom Sizes Available
Wet/Dry (Paddle)
Wet/Dry (Paddle) Image
Features
  • Option of EZ Adjustment or Hand Crank Adjustment system
  • Rugged Edstrom Nipples
  • Direct drill-threaded water line: eliminates chance of leaks around the nipple
  • Proper feed space dimensions (14″ or more) – designed for hog comfort and accessibility of feed
  • Feed Saving Lip – saves feed and money
  • This feeder comes in 36″ height
Accessories
  • Drop Tube Holders included
Part # (EZ-Squeeze) Trough Spaces Pigs per Feeder Length (in) Length (cm) Width (in) Width (cm) Height (in) Height (cm) Feed Capacity (lbs) Feed Capacity (kg)
SP28-202 Double 2 40-48 28.25″ 72 22″ 56 36 91 188 85
SP30-202 Double 2 40-48 30.25″ 77 22″ 56 36 91 202 92
SP42-203 Double 3 60-72 42.25″ 107 22″ 56 36 91 282 128
SP48-203 Double 3 60-72 48.25″ 123 22″ 56 36 91 323 147
SP56-204 Double 4 80-96 56.25″ 143 22″ 56 36 91 376 171
SP58-204 Double 4 80-96 58.25″ 148 22″ 56 36 91 390 177
SP60-204 Double 4 80-96 60.25″ 153 22″ 56 36 91 403 183
SP70-205 Double 5 100-124 70.25″ 178 22″ 56 36 91 470 213
SP77-205* Single Flanged Divider Double 5 100-124 77.25″ 196 22″ 56 36 91 517 235
SP84-206 Double 6 120-144 84.25″ 214 22″ 56 36 91 564 256
SP92-206* Single Flanged Divider Double 6 120-144 92.25″ 234 22″ 56 36 91 618 280
Wet/Dry Feeders
Nursery Image
Nursery
Application Nursery Shelf Feeders are used to raise piglets after weaning from 8-10 pounds to 45-60 pounds. Stocking Rates CSN (Wet/Dry Nursery feeder) - 1”/pig.... Read More
Wean-to-Finish Image
Wean-to-Finish
Application Wean-to-Finish Shelf Feeders are used to raise piglets from weaning to market weight. Stocking Rates CSW (Wet/Dry Nursery feeder) - 12-13 pigs per feed spa... Read More
Finish Image
Finish
Application Finish Shelf Feeders are used to raise market hogs up to market weight. Stocking Rates CSF Wet/Dry Finish Feeder – 12-13 pigs per feed space. ... Read More
Wean-to-Finish Tall Image
Wean-to-Finish Tall
Application Wean-to-Finish Shelf Feeders are used to raise piglets from weaning to market weight. Stocking Rates CSW XT Wet/Dry Wean-to-Finish Feeder – 12-13 pigs pe... Read More
Finish Tall Image
Finish Tall
Application Finish Shelf Feeders are used to raise market hogs up to market weight. Stocking Rates CSF XT Wet/Dry Wean-to-Finish Feeder – 12-13 pigs per feed space.... Read More
Shut Off Feeder Image
Shut Off Feeder
Application Wean-to-Finish Shelf Feeders are used to raise piglets from weaning to market weight. Stocking Rates SO (Wet/Dry Shut off Shelf Feeder) – 12-13 pigs per ... Read More
Drop Shelf Feeder Image
Drop Shelf Feeder
Application Wean-to-Finish Shelf Feeders are used to raise piglets from weaning to market weight. Stocking Rates CSD Wet/Dry Wean-to-Finish Feeder – 12-13 pigs per f... Read More
Wet/Dry (Paddle) Image
Wet/Dry (Paddle)
Features Option of EZ Adjustment or Hand Crank Adjustment system Rugged Edstrom Nipples Direct drill-threaded water line: eliminates chance of leaks around the nipple Proper ... Read More

42204 245th Street
Alexandria, SD 57311
(855) 306-6354

Facebook
Twitter
Instagram
Linkedin
Youtube

DOWNLOAD OUR

CATALOG

Copyright 2021 SDI | Website by Heartland Marketing Group
